My 8052 and STA013 based MP3 player

Current (As of 26 May 2002)

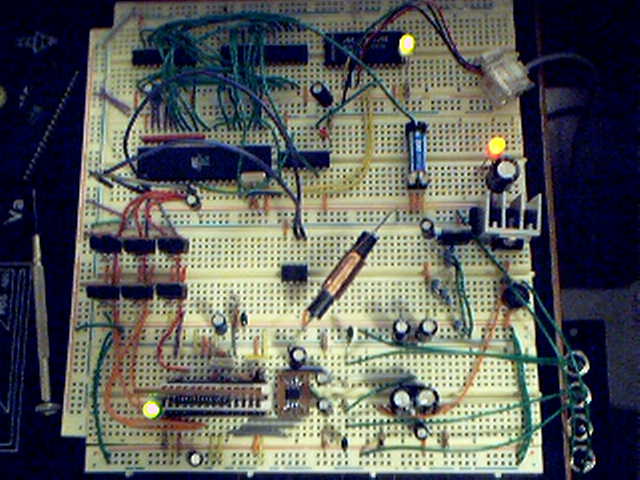

Bottom Left is the MP3 decoder and the DAC is right next to it

Bottom Right is the audio-line out

Top Left is RAM and the 8052 CPU is right below it

Top Right is the serial interface

Middle Left is the 5v <> 3v level shifters

Middle Right is the 5v and 3.3v power regulators

Middle Middle is the 2-wire 8k EEPROM and the inductor for the DAC power buffer

The blue bar next to the red light is a relay for battery backed RAM

Thats it for now, Ben Young
